Product Description:
The Accelerometer Sensor is an advanced acceleration measurement unit designed for reliable performance in harsh environments. It is capable of measuring acceleration up to ±70g with a threshold value of 5μg and a noise level of 5mV. The unit also offers a wide operating temperature range of -55°C to +85°C, allowing it to be used in a variety of applications.
This Accelerometer Sensor is a highly reliable and accurate device that is perfect for use in a wide range of applications, such as automotive, aerospace, industrial, and medical. The unit is designed to provide precise acceleration measurement with low power consumption and offers a robust range of features and functions. It is also capable of withstanding extreme temperatures and harsh environmental conditions. With its superior performance and reliability, the Accelerometer Sensor is the ideal choice for any application that requires accurate acceleration measurement.
KSJB2 series quartz flexible accelerometer is a high-precision, inertial navigation level accelerometer, the product has excellent long-term stability, repeatability, start-up performance, environmental adaptability and high reliability characteristics, can be used for static testing can be used for dynamic testing, is also a standard vibration sensor and inclination sensor.
The output current of the product is linearly related to the force or acceleration received, and the user can select the appropriate sampling resistance through calculation to achieve high-precision output. The built-in temperature sensor can be used to compensate the offset value and scale factor to reduce the impact of ambient temperature according to user needs.
Outline diagram and pin definition:

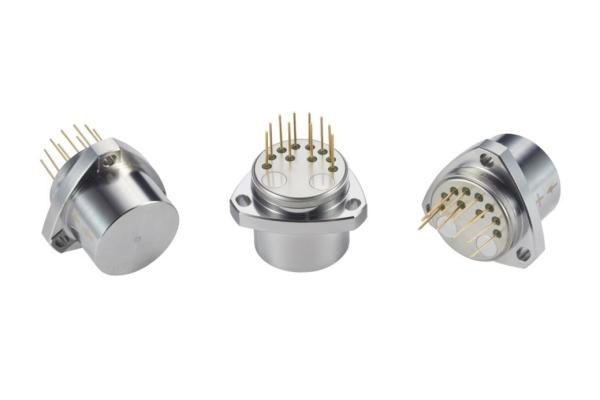

Figure I: Universal accelerometer
Pin conventional definition: 1, signal output; 2. Empty; 3, -15V; 4, +15V; 5, power supply and signal ground; 6. Empty; 7. Empty; 8. Empty; 9, -9V output; 10, +9V output.
Technical Parameters:
| Number | Parameters | KSJB2-01 | KSJB2-02 | KSJB2-03 | | 1 | Scope | ±70g | ±70g | ±70g | | 2 | Threshold value | 5μg | 5μg | 5μg | | 3 | deviation value K0/K1 | ≤±3 mg | ≤±3 mg | ≤±5 mg | | 4 | scale factor K1 | 0.8~1.2 mA/g | 0.8~1.2 mA/g | 0.8~1.2 mA/g | | 5 | Second order nonlinear coefficient K2 | ≤±10μg /g2 | ≤±15μg /g2 | ≤±20μg /g2 | | 6 | 0g 4 hours short-term stability | ≤10 μg | ≤15 μg | ≤20 μg | | 7 | 1g 4 hours short-term stability | ≤10 ppm | ≤15 ppm | ≤20 ppm | | 8 | deviation value synthesis repeatability σK0 (1σ,one month) | ≤10 μg | ≤20 μg | ≤30 μg | | 9 | Scale factor integrated repeatability σK1/K1 (1σ,one month) | ≤15ppm | ≤30 ppm | ≤50 ppm | | 10 | Comprehensive repeatability of nonlinear coefficients K2/K1(1σ,one month) | ≤±10 μg /g2 | ≤±20 μg /g2 | ≤±30 μg /g2 | | 11 | deviation value Temperature coefficient(The mean value of the whole temperature zone) | ≤±10 μg /℃ | ≤±30 μg /℃ | ≤±50 μg /℃ | | 12 | Scale factor Temperature coefficient(The mean value of the whole temperature zone) | ≤±20 ppm /℃ | ≤±30 ppm /℃ | ≤±50 ppm /℃ | | 13 | Noise(The sampling resistance is 840Ω) | ≤5mv | ≤5mv | ≤5mv | | 14 | Natural frequency | 400~800 Hz | 400~800 Hz | 400~800 Hz | | 15 | bandwidth | 800~2500 Hz | 800~2500 Hz | 800~2500 Hz | | 16 | Random vibration | 6g(20-2000Hz) | 6g(20-2000Hz) | 6g(20-2000Hz) | | 17 | strike | 100g,8ms,1/2sin | 100g,8ms,1/2sin | 100g,8ms,1/2sin | | 18 | Operating temperature range | -55～+85℃ | -55～+85℃ | -55～+85℃ | | 19 | Storage temperature range | -60~+120℃ | -60~+120℃ | 60~+120℃ | | 20 | Power supply | ±12~±15V | ±12~±15V | ±12~±15V | | 21 | Current consumption | ≤±20mA | ≤±20mA | ≤±20mA | | 22 | Temperature sensor | User customizable | User customizable | User customizable | | 23 | dimension | Ф25.4X30mm | Ф25.4X30mm | Ф25.4X30mm | | 24 | weight | ≤80g | ≤80g | ≤80g | Note: 1. Scale factor is adjusted according to user requirements; 2.Temperature sensor: divided into AD590, pt1000, 18B20, 3. Test cycle: divided into 1 month, 3 months, 6 months, 12 months, according to user requirements for testing; 4. According to user installation requirements; The dimensions can be slightly adjusted according to user requirements, and other test requirements can be carried out according to customer requirements. | |
