Ue differential Pressure Controller H100k-540 differential pressure switches
Product Introduction
H100 series mechanical pressure switch is a pressure switch with good performance ratio. It is used in industrial process and OEM users. The integrated design and the switch structure of the housing make it more solid and more convenient to connect. The all-weather series UE pressure switch has a variety of micro switches and a variety of process interface options to meet a variety of needs. H100 series UE pressure switches are used in heat tracking, anti-freezing protection, process devices (raw materials, compressors), alarm panel input and flame blocking systems.
Features
Output Mode: It has a single - pole double - throw (SPDT) output, which can be connected as a “normally open” or “normally closed” type.
Shell Design: The shell is made of die - cast aluminum with an epoxy resin coating, which meets the NEMA 4X/IP65 standard, with good corrosion resistance and protection performance.
Sensing Components: It has a variety of pressure - sensing components compatible with the medium, which can adapt to different working media. And it is equipped with a Buna - N rubber diaphragm, which has certain flexibility and durability.
Adjustable Dead Zone: There is an adjustable dead - zone switch specially designed for pumps, which can be adjusted according to actual needs.
Technical Specs at a Glance
| Brand name | UE |
| Model | H100K-540 |
| Type | Electronic pressure switch |
| Pressure rang | -1 ... 344.7bar |
| environment temperature: | -40 to 160℉ |
| Material | Stainless steel |
| adjustable range | ±1% ... ±1.5% |
| electrical connection | 1/2"NPTF |
| Pressure connection | 1/4"NPTF |
| Weight | 3kg |
Product Tags:
|
|

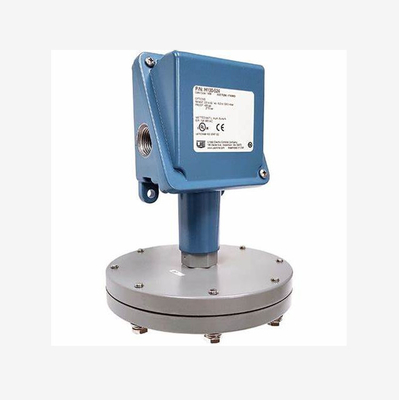

UE H100K-540 Differential Pressure Switch Stainless Steel Images
|
