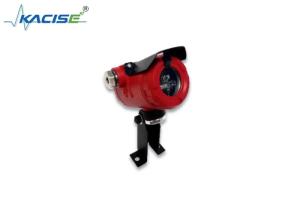

Industrial Point Type Infrared And Ultraviolet Composite Flame Detector With Dual Detection Technology

Point-type infrared and ultraviolet composite flame detector

Introduction

This product is a point-type explosion-proof fire detector that uses dual infrared and ultraviolet composite detection. With its stable and reliable performance, exquisite appearance design and reasonable price, it provides economical flame detection solutions for commercial and industrial users. The product's infrared and ultraviolet sensors detect flame flickering, radiation intensity, spectral center wavelength and other parameters. Combined with the optimized judgment algorithm, it can achieve rapid response while effectively suppressing various external interferences. This product implements the standards GB15631-2008, GB12791-2006, GB3836.1-2010, GB3836.2-2010.

Features

• Dual infrared and ultraviolet composite detection
• Sensitivity level I
• Deep measurement distance: Level I 25m
• Lower sensor cost, more cost-effective
• Adopting explosion-proof armor design, more suitable for explosive scenes such as fuel open flames
• Optical path self-test function: The product can self-detect the dirtiness of the 6mm sapphire crystal lens and issue a fault alarm when the pollution blocks the normal flame detection
• Built-in optical alarm, on-site alarm is more intuitive
• High explosion-proof level: Ex d IIC T6 Gb
• Protection level: IP65

Application

Pipeline corridor, tunnel, small warehouse
